Concrete5 – Drop Down Auto-Nav Menu

Custom Auto-Nav template

In this tutorial http://www.codeblog.ch/en/2009/03/concrete5-templates/ I explained how to create a custom template for the page_list block to add a thumbnail to a list. The process for Auto-Nav is the same.

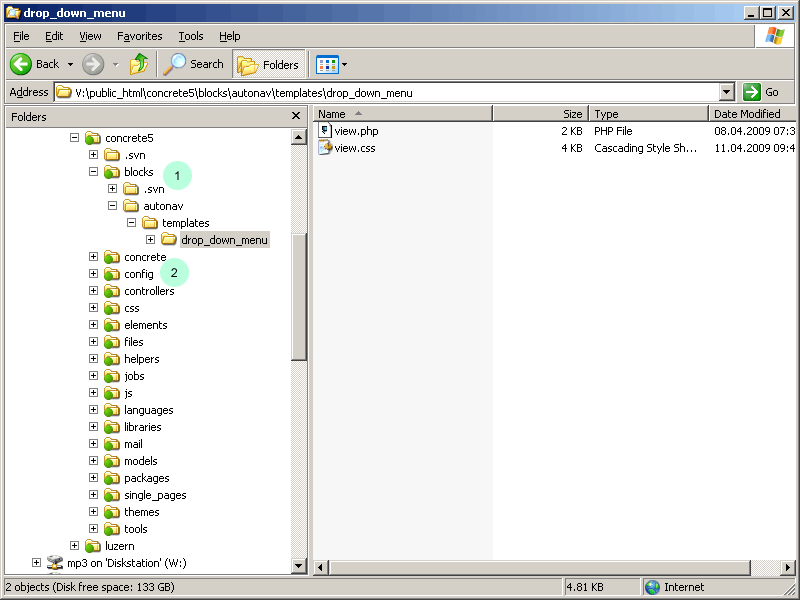

4-template

You have to create a few folders first. Within “blocks” create “autonav/templates/drop_down_menu”

Please note that you’ll find another folder called “blocks” underneath the folder “concrete”, marked with the number 2. This is part of the Concrete5 core, don’t touch it! The block-folder you’ll go with is in the root of your Concrete5 site!

We’re going to use a pure CSS menu by Stu Nicholls, you can find it here: http://www.cssplay.co.uk/menus/final_drop.html It work well with almost every browser and doesn’t need JavaScript at all!

First, we create a file called view.css:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
/* ================================================================
This copyright notice must be untouched at all times.

The original version of this stylesheet and the associated (x)html
is available at http://www.cssplay.co.uk/menus/final_drop.html
Copyright (c) 2005-2008 Stu Nicholls. All rights reserved.
This stylesheet and the associated (x)html may be modified in any
way to fit your requirements.
=================================================================== */

.menu {width:745px; height:32px; position:relative; z-index:100;font-family:arial, sans-serif;}
/* hack to correct IE5.5 faulty box model */
* html .menu {width:746px; w\idth:745px;}
/* remove all the bullets, borders and padding from the default list styling */
.menu ul {padding:0;margin:0;list-style-type:none;}
.menu ul ul {width:149px;}
/* float the list to make it horizontal and a relative positon so that you can control the dropdown menu positon */
.menu li {float:left;width:149px;position:relative;}
/* style the links for the top level */
.menu a, .menu a:visited {display:block;font-size:12px;text-decoration:none; color:#fff; width:138px; height:30px; background:#09c; padding-left:10px; line-height:29px; font-weight:bold;}
/* a hack so that IE5.5 faulty box model is corrected */
* html .menu a, * html .menu a:visited {width:149px; w\idth:138px;}

/* style the second level background */
.menu ul ul a.drop, .menu ul ul a.drop:visited {background:#d4d8bd url(http://www.cssplay.co.uk/menus/breadcrumbs/grey-arrow.gif) no-repeat 130px center;}
/* style the second level hover */
.menu ul ul a.drop:hover{background:#c9ba65 url(http://www.cssplay.co.uk/menus/breadcrumbs/blue-arrow.gif) no-repeat 130px center;}
.menu ul ul :hover > a.drop {background:#c9ba65 url(http://www.cssplay.co.uk/menus/breadcrumbs/blue-arrow.gif) no-repeat 130px center;}
/* style the third level background */
.menu ul ul ul a, .menu ul ul ul a:visited {background:#e2dfa8;}
/* style the third level hover */
.menu ul ul ul a:hover {background:#b2ab9b;}

/* hide the sub levels and give them a positon absolute so that they take up no room */
.menu ul ul {visibility:hidden;position:absolute;height:0;top:31px;left:0; width:149px;}
/* another hack for IE5.5 */
* html .menu ul ul {top:30px;t\op:31px;}

/* position the third level flyout menu */
.menu ul ul ul{left:149px; top:-1px; width:149px;}

/* position the third level flyout menu for a left flyout */
.menu ul ul ul.left {left:-149px;}

/* style the table so that it takes no ppart in the layout - required for IE to work */
.menu table {position:absolute; top:0; left:0; border-collapse:collapse;;}

/* style the second level links */
.menu ul ul a, .menu ul ul a:visited {background:#d4d8bd; color:#000; height:auto; line-height:1em; padding:5px 10px; width:128px;}
/* yet another hack for IE5.5 */
* html .menu ul ul a, * html .menu ul ul a:visited {width:150px;w\idth:128px;}

/* style the top level hover */
.menu a:hover, .menu ul ul a:hover{color:#000; background:#b7d186;}
.menu :hover > a, .menu ul ul :hover > a {color:#000; background:#b7d186;}

/* make the second level visible when hover on first level list OR link */
.menu ul li:hover ul,
.menu ul a:hover ul{visibility:visible; }
/* keep the third level hidden when you hover on first level list OR link */
.menu ul :hover ul ul{visibility:hidden;}
/* make the third level visible when you hover over second level list OR link */
.menu ul :hover ul :hover ul{ visibility:visible;}

I made a few modifications to his style sheet, but they are not needed. I just removed the border because I thought the don’t go well with my theme. Stu Nicholls allows you to modify his style sheet the way you want, as long as you don’t remove the note at the beginning of the file.

Next we need some php code to create the html structure for his menu. It is usually a good idea to copy the existing view of the block. In that case “concrete/blocks/autonav/view.php”. But since you have a tutorial, you can simply copy the following code and save it as view.php in drop_down_menu:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
<?php
	defined('C5_EXECUTE') or die(_("Access Denied."));
	$aBlocks = $controller->generateNav();
	global $c;

	if ($c->isEditMode()) {
		echo("
<div class=\"menu\" style=\"position:inherit!important;\">
<ul>");
	}
	else {
		echo("
<div class=\"menu\">
<ul>");
	}

	$nh = Loader::helper('navigation');

	foreach($aBlocks as $ni) {
		$_c = $ni->getCollectionObject();
		if (!$_c->getCollectionAttributeValue('exclude_nav')) {

			$thisLevel = $ni->getLevel();

			if ($thisLevel > $lastLevel) {
				echo("<!--[if IE 7]><!--></a><!--<![endif]-->\n<!--[if lte IE 6]>
<table>
<tr>
<td><![endif]-->\n
<ul>\n");
			} else if ($thisLevel < $lastLevel) {
				for ($j = $thisLevel; $j < $lastLevel; $j++) {
					echo("</a></li>
\n</ul>
\n<!--[if lte IE 6]></td>
</tr>
</table>
</a><![endif]--></li>
\n");
				}
			}

			if ($thisLevel == $lastLevel && $i >0) {
			   echo "</a></li>
\n";
			}

			$pageLink = false;

			if ($_c->getCollectionAttributeValue('replace_link_with_first_in_nav')) {
				$subPage = $_c->getFirstChild();
				if ($subPage instanceof Page) {
					$pageLink = $nh->getLinkToCollection($subPage);
				}
			}

			if (!$pageLink) {
				$pageLink = $ni->getURL();
			}

			echo '
	<li><a href="'.$pageLink.'">' . $ni->getName();

			$lastLevel = $thisLevel;
			$i++;
		}
	}

	$thisLevel = 0;
	for ($i = $thisLevel; $i <= $lastLevel; $i++) {
		echo("</a></li>
</ul>
");
	}
	echo '</div>
';
?>

The result

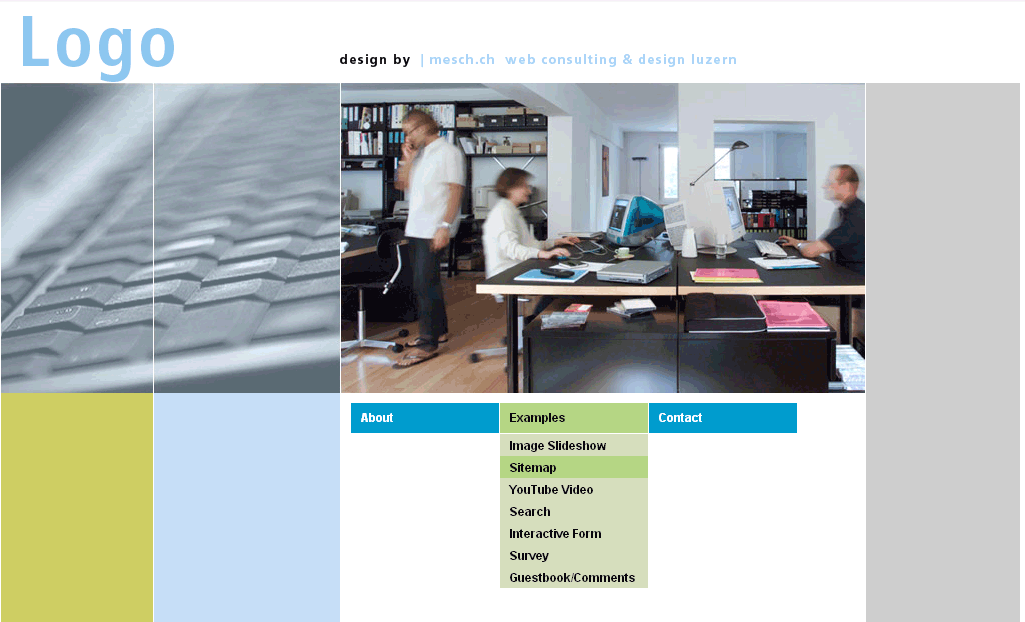

Now that you have created your template, click on that ugly navigation again, you’ll see a menu with a command called “Set Custom Template”. Click on it and you’ll see a select box where you can select your template. Apply and you’ll see a nice drop down menu like this:

5-result

You can download the template including the theme here: Theme + Auto-Nav Template
Simply extract the zip file to your concrete5 site directory, it’ll create all the needed directories and files!




Seguir leyendo: 1, 2, 3


67 Comments

I really need help, need to finish this website today and still cant seem to get the menu working properly

Hi there, first I would like to thank for all the work sharing this info withou profit! People like you make the world a better place!

Second: I have an old javascript menu, in http://www.luzesom.pt that is “pull-right-side”. Can this be changed to do that, when I upgrade to C5?

Hi Pedro,

thanks, I’m glad I was able to offer your some free information!
I haven’t seen a menu which I couldn’t convert to concrete5 but depending on the structure and complexity it might take more or less time.

The menu on your site uses a pretty old fashioned structure based on tables. I wouldn’t recommend to convert that menu to concrete5 but rather create a new one.
But you’ll certainly need some time and developer skills!

Remo

I’m not really sure what you mean by “does not appear correctly”. I can see that your navigation doesn’t work well because there’s a gap between the horizontal menu button and the sub items. This is because you’ve got a margin-top: 14px applied to “div#main-container #header ul”. I’d recommend to change that, but beside that, I can’t see any issues!

Hi Remo,

I am a newbee with C5.

I have added your files to display a dropdown menu. I have created two subpages for the page innovation. But the subpages are not displayed.

Can you help me ? That would be nice. Thank you.

Frank

Hi Remo,

now it is running. Thank you again. I have changed the setting “Unterseiten Ebenen” to “alle anzeigen”. I have to think about these options 🙂

Frank

Hi,

I’ve added a border-left: 1px style to the menu bar. I wanted to have a divider in between menu items. The problem is I can’t seem to remove the left border for the first menu item. I’ve tried .menu li.first {border: none;} but nothing happens. Has anyone been successful with this?

I don’t think there’s a class called first, at least I can’t seem to see one. You either have to update the PHP script to add a first class or use :first-child instead of .first.

Hi Remo,

Thanks for this. I just have a small issue, in my website the template shows up perfect except there is a black empty space beside the drop down. Is this normal, and is there a way to get rid of it?

Hi,

I am having an issue with the Amiant menu secondary levels disappearing when I go down to click them. Also I can’t seem to get the menu to go to all my pages and I did go to the page types and put the menu in.

I saw that you had some code to install. I am not sure about where I am supposed to be putting code. I am new at this. I have watched a lot of the editing tutorials, but haven’t gotten to all of the tutorials yet.

My webpage is wanderz.us. I do have a complete page up and am working on several more.

I can click the add ons in the blocks, but where and how do I put the code in to fix my drop down issue?

I sure would appreciate it if you could give me some pointers in an easy to understand way for someone without a lot of computer programming knowledge. I can cut and paste with the best of them if I know where and how get there. Thanks.

Wanda

Sorry, I’m not the author of the amiant menu, no clue how it works. You’re probably better off asking the actual author!
